SterilDisk Flexible
Temperature data logger from -20°C to 140°C (calibration from 25°C to 140°C), with 30 cm flexible cable and 50 mm or on demand rigid probe …

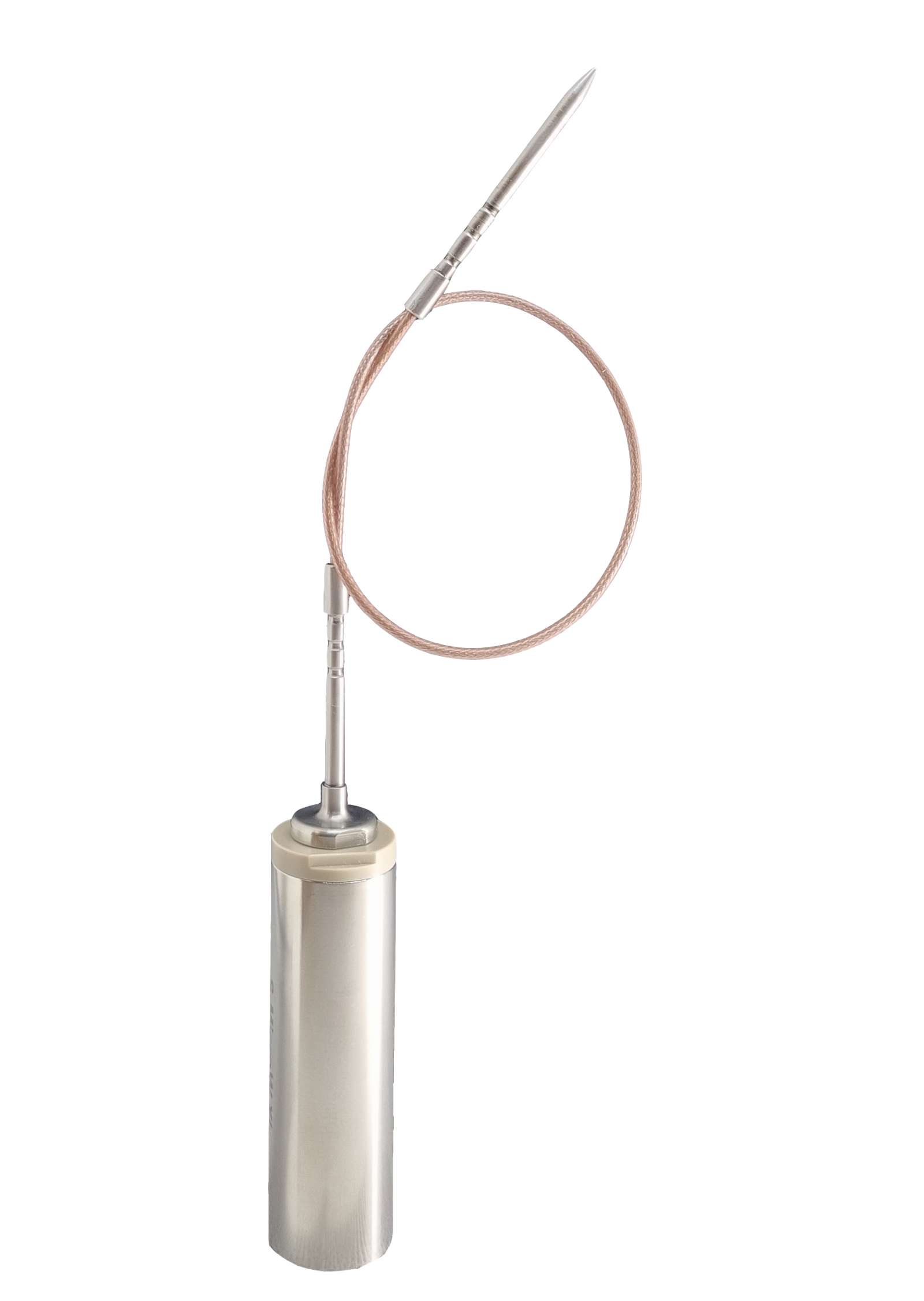

MicroW L Flexible is a temperature data logger from -40°C to 140°C (calibration from 25°C to 140°C) with 30 cm felxible probe and 50 mm or on demand length external probe (probes cannot be switched) on a 5 mm base (base height is not counted for probe length), managed with Windows software and USB interface (DiskInterface HS, Multibay). Battery is user replaceable and the data logger is provided with a National Reference traceable cetificate on 6 points.
The system is made up by:
| Dimensions | 64 h X 20 Ø (mm) |
|---|---|
| Probe dimensions | Probe base dimensions 5 h X 14 Ø (mm) - Flexible probe 300 l X 4 Ø (mm) - Rigid probe base dimensions 5 h X 5,5 Ø (mm) - Probe 50/on demand l X 3 Ø (mm) (l on demand: min. 12 mm / max. 175 mm. For longer probes ask for quotation) |
| Weight | 69 g |
| Materials | Stainless steel AISI316L, PEEK, FKM (o-ring) |
| Temperature range | -40°C ÷ +140°C |
| Standard calibration points (temperature) | 25/50/75/100/121/140°C |
| Extra calibration points (temperature) | Within the range -40 °C ÷ +140 °C |
| Temperature resolution | 0,01 °C |
| Temperature accuracy | ± 0,1 °C (within the calibration range) |
| Memory (n. of acquisitions) | 20.224 |
| Acquisition step | From 1 every second up, with 1 second steps |
| Protection degree | IP68 |
| Battery life | +17.000.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures) |
| Software&Mobile App | SPD, TS Manager |
| Accessories | DiskInterface HS, Multibay universale |
