Data management software for TC-Log with real time monitoring too

TC-Log (all versions) management software. Start and download loggers, connect multiple loggers together and see both graph and table of each. Possibility to select the curves to show on the graph and to monitor real time data when loggers are connected by means of the interface. Export data into excel and print complete reports. Possibility to calibrate each sensor by the user.

Download

TecnoUtility - Download to install the software
TC-Log 8 USB (all versions) - USB Drivers

Main features

  • Multiple connection

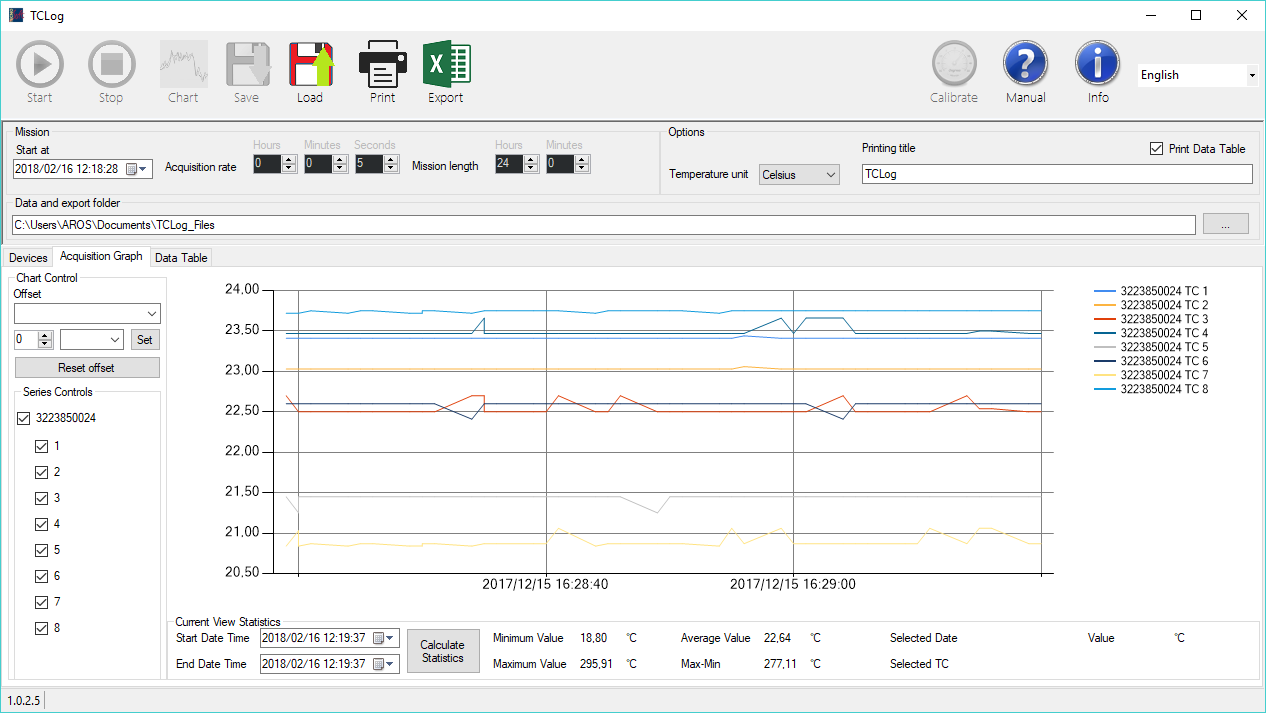

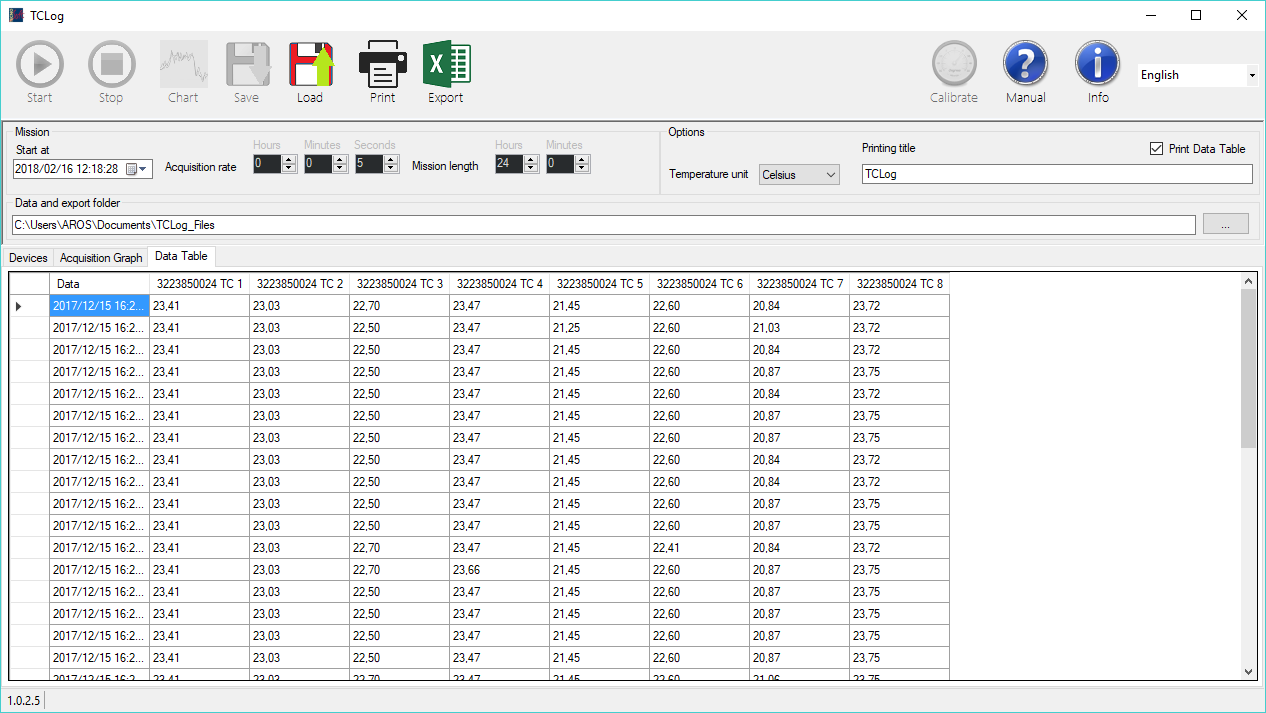

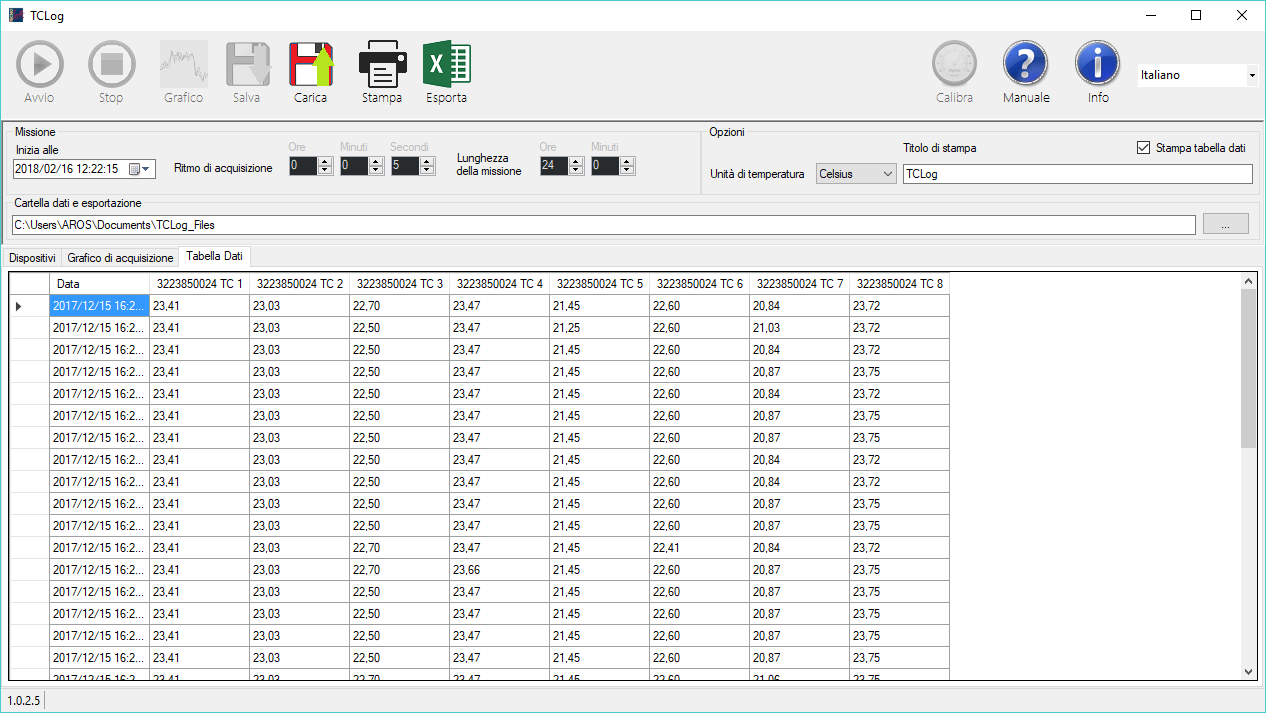

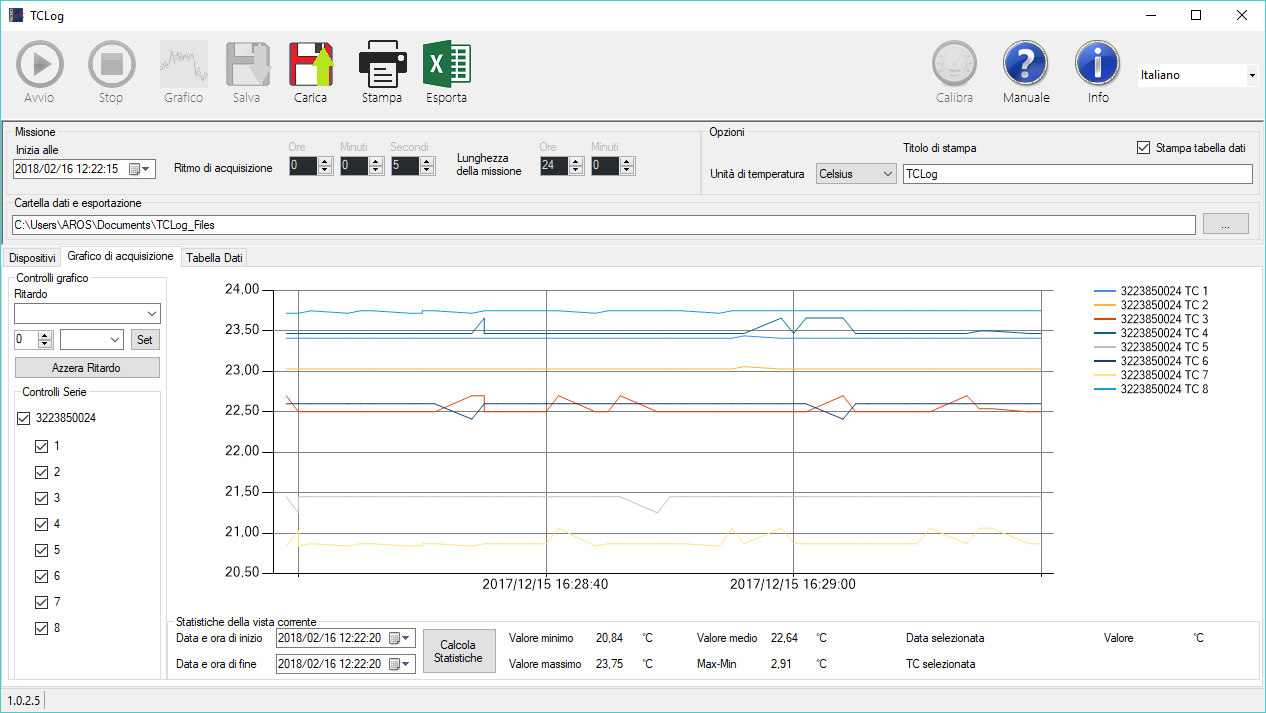

  • Graph and table for all data
  • Offset over time for each curve
  • Selectable curves on the graph
  • Export data into excel

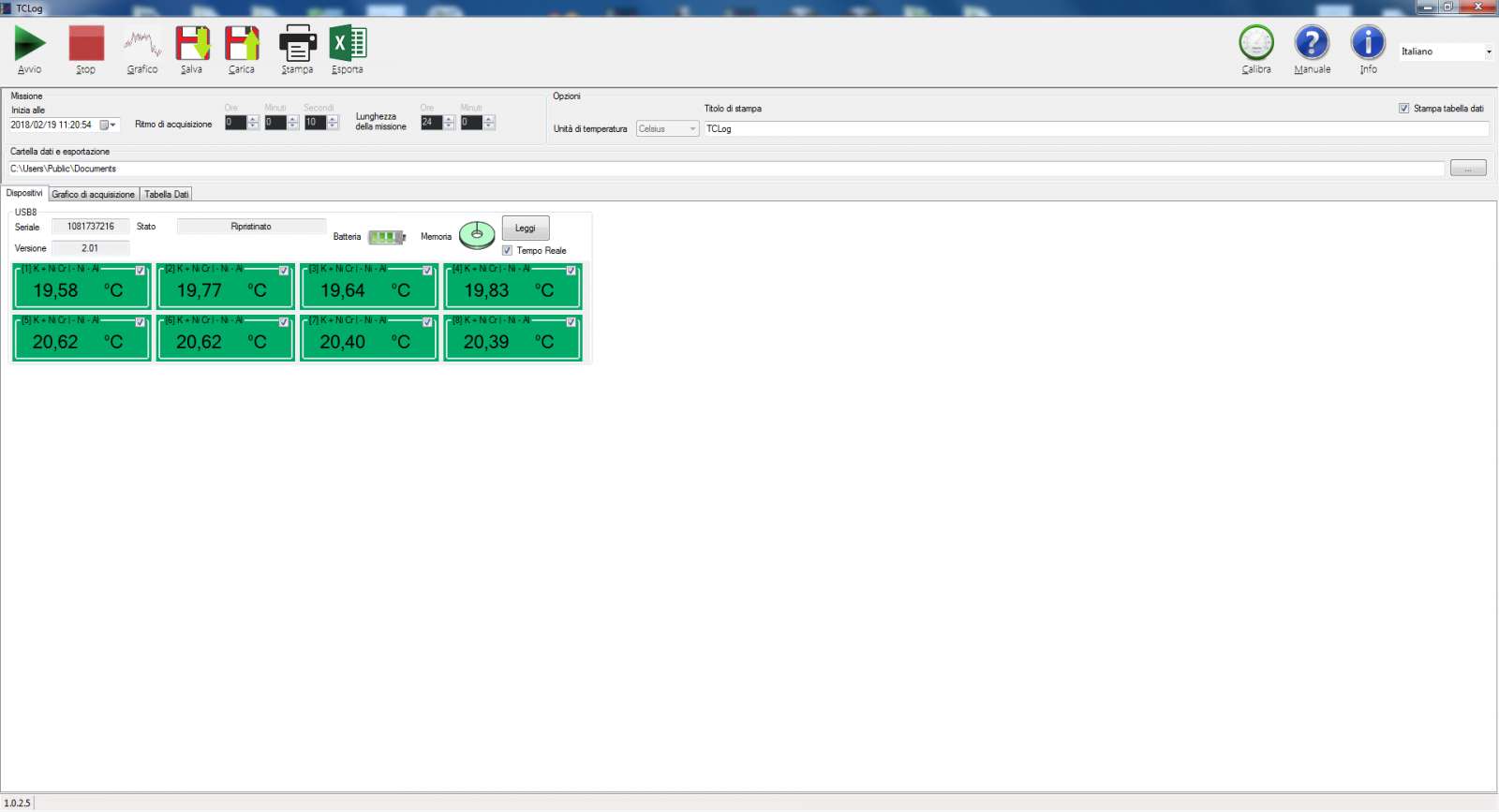

  • Real time monitoring (with loggers connected)
  • Calibration feature

Plus

  • Intuitive and easy to use
  • Real time monitoring with or without logging on devices internal memory
  • Calibration system easy and immediate (up to 10 points per each sensor can be calibrated)
  • Calibration files can be exported and imported on other systems
Operating systems Windows 7, 8, 10 (32, 64 bit)
Data loggers supported TC-Log 8, TC-Log 8 USB, TC-Log 8 K USB, TC-Log 8 T USB, TC-Log 8 S, TC-Log 8 USB S
Data management Archive for missions identified by serial number and start time/date of the data logger.
Data display Graph with zomm, table, printed report with all data, graph, statistics
Data display Realt time visualization of current data
Real time mode With logger connected possibility to real time monitor all enabled sensors
Calibration mode With TC-Log software, possibility to set a calibration for each sensor
Customizable parameters Acquisition step, mission duration
Languages Italian, English
