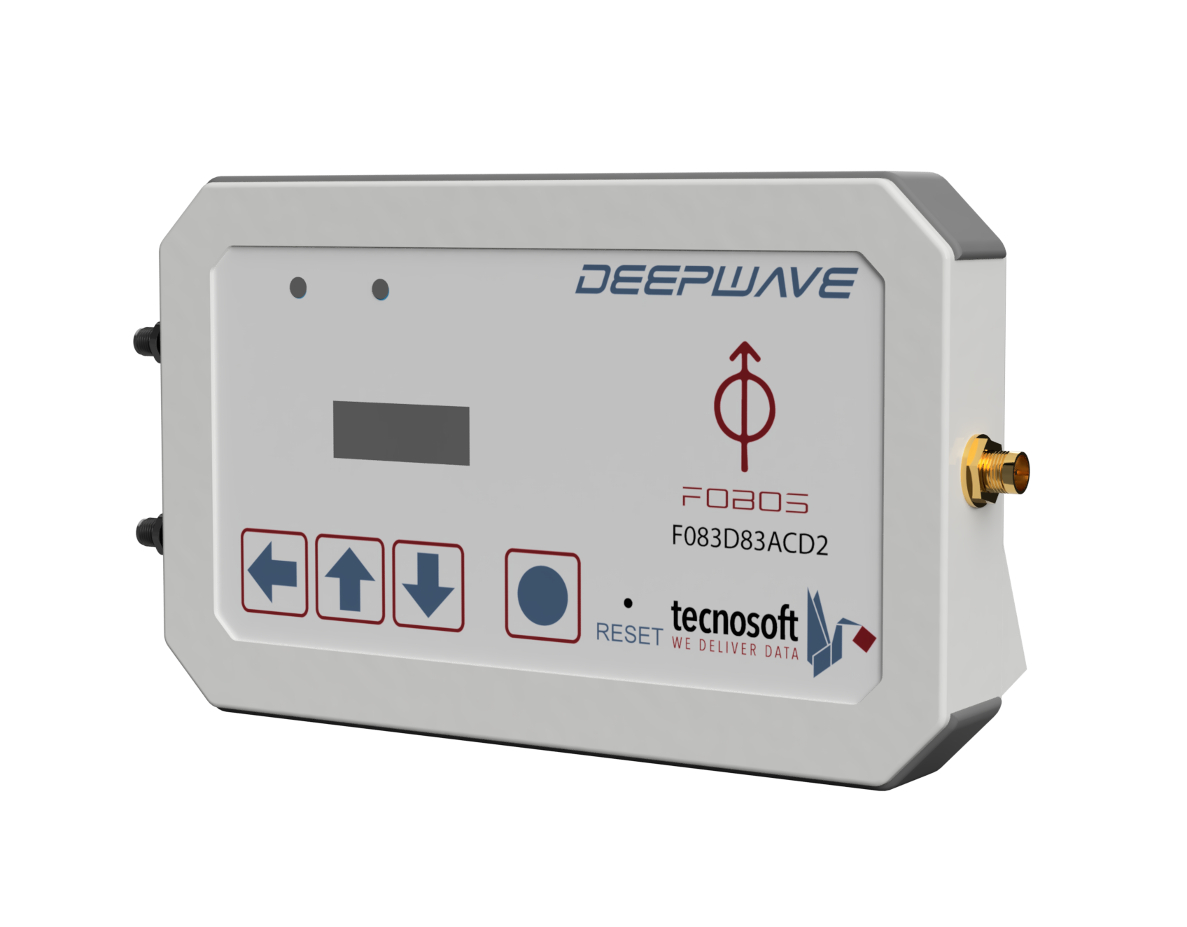

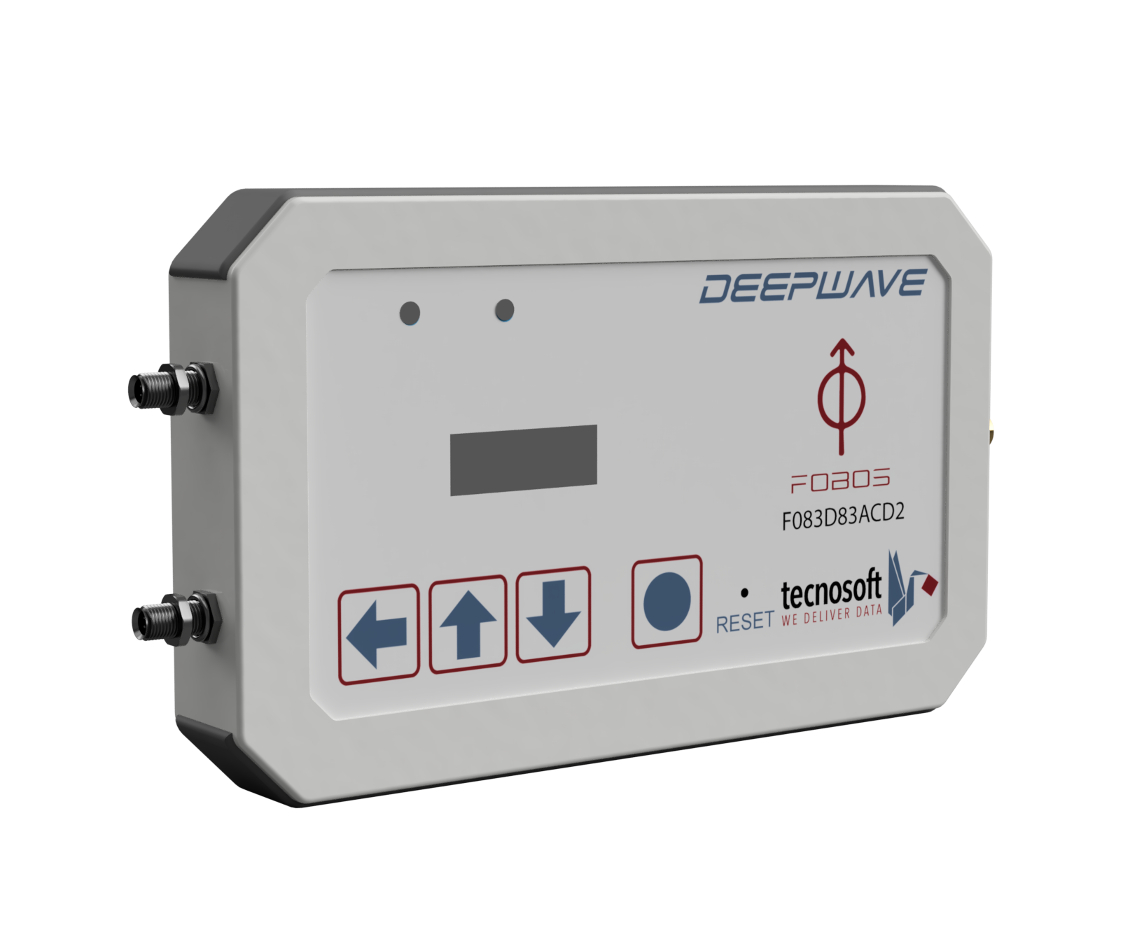

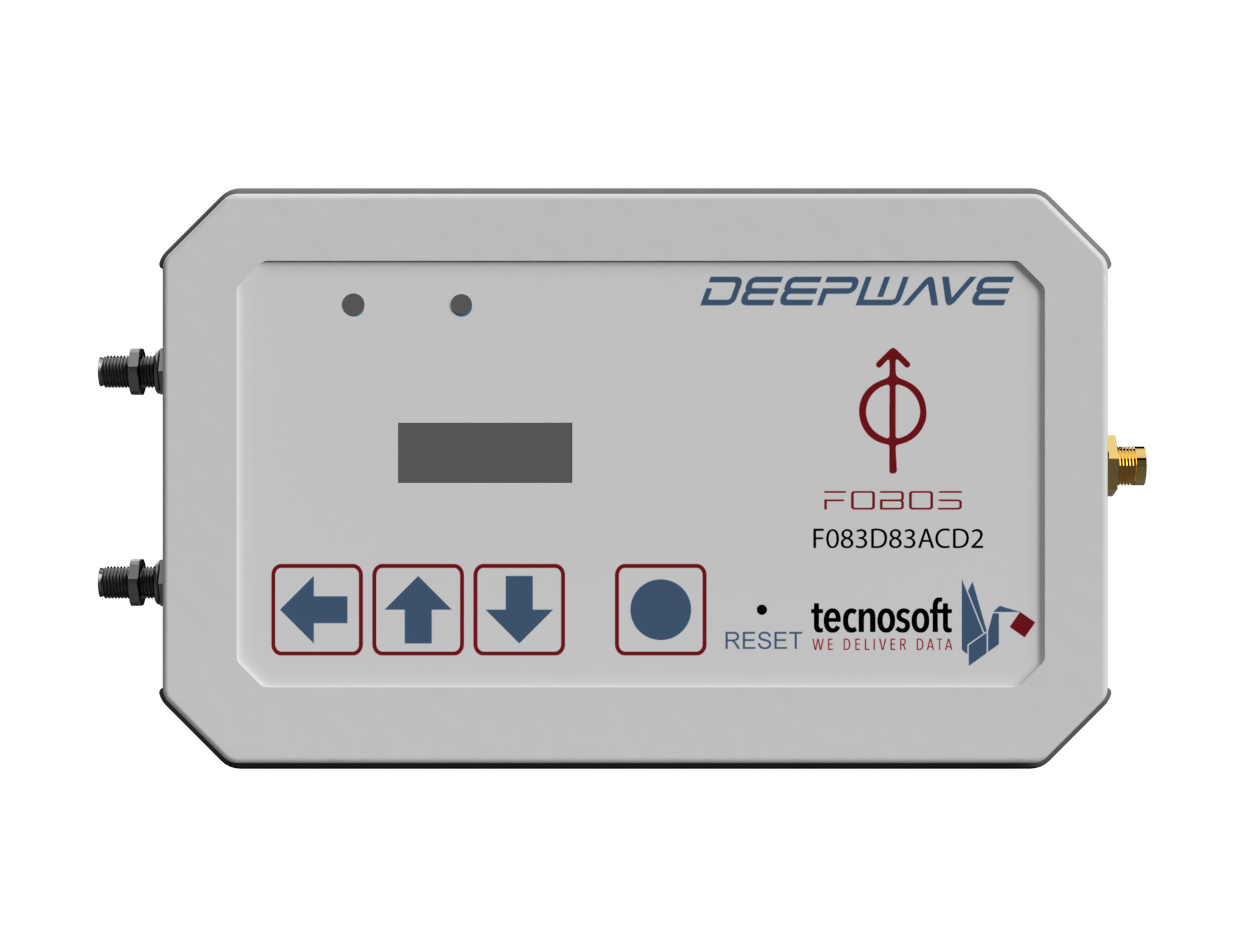

Radio temperature datalogger for long distances

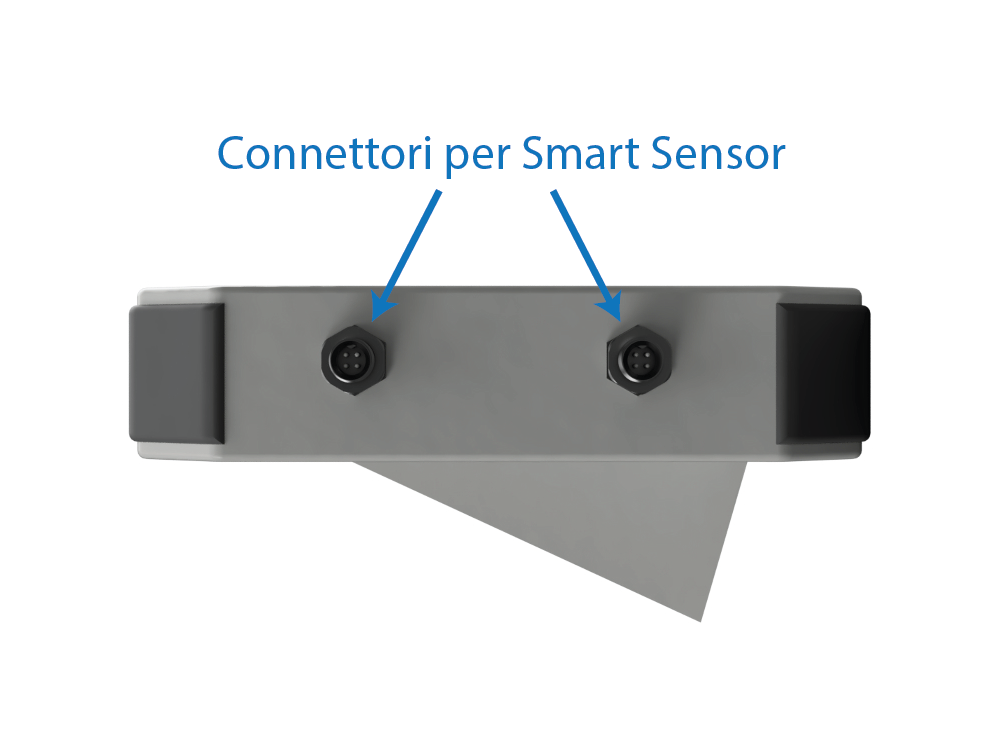

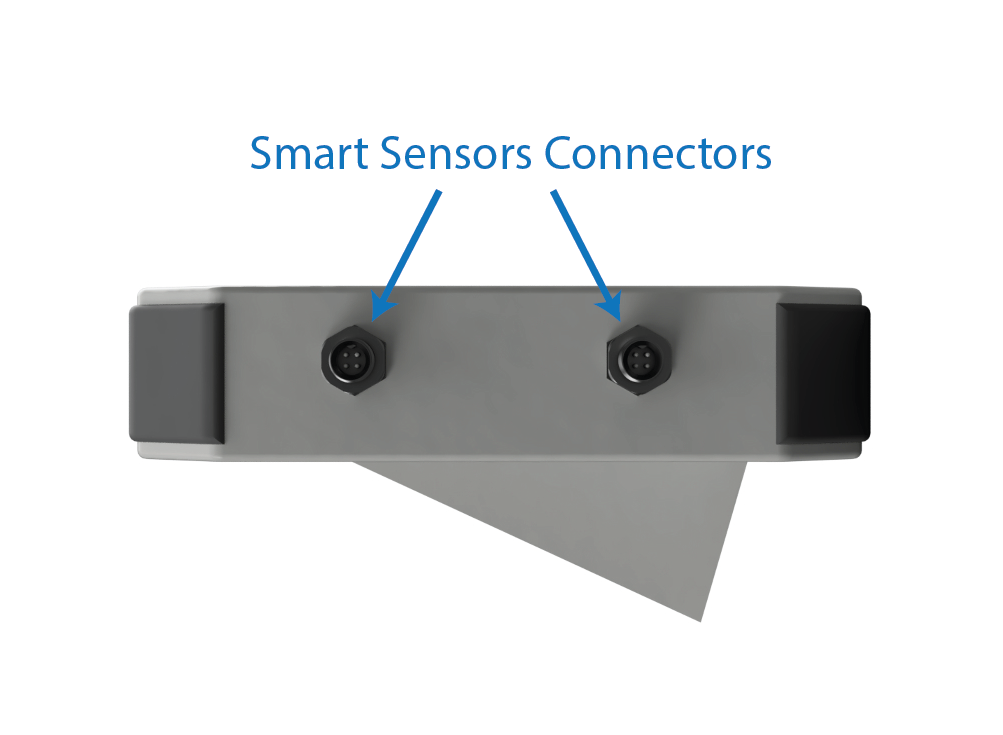

LoRa data logger for DeepWave monitoring certified and validatable system for pharmaceuticals, healthcare, medical, food&beverages, with long distance transmission, OLED display for status checking, 4-keys keypad for screen scrolling and buzzer for acoustic alarms. The external antenna allows an extended transmission range in all directions. It has 2 Smart Sensors connectors to connect any type of Smart Sensor to be chosen among the available ones (sensors are not included). The Smart Sensors are provided with a national reference traceable calibration certificate and permit a quick, economic and easy recaslibration of the system without any external the intervention. Batteries are easily replaceable by the user.

Applications

Main features

  • Radio module with long distance transmission (up to 3 km in open field)
  • Accepts up to two Smart Sensors of temperature, humidity, differential pressure, light
  • 0.91" OLED display

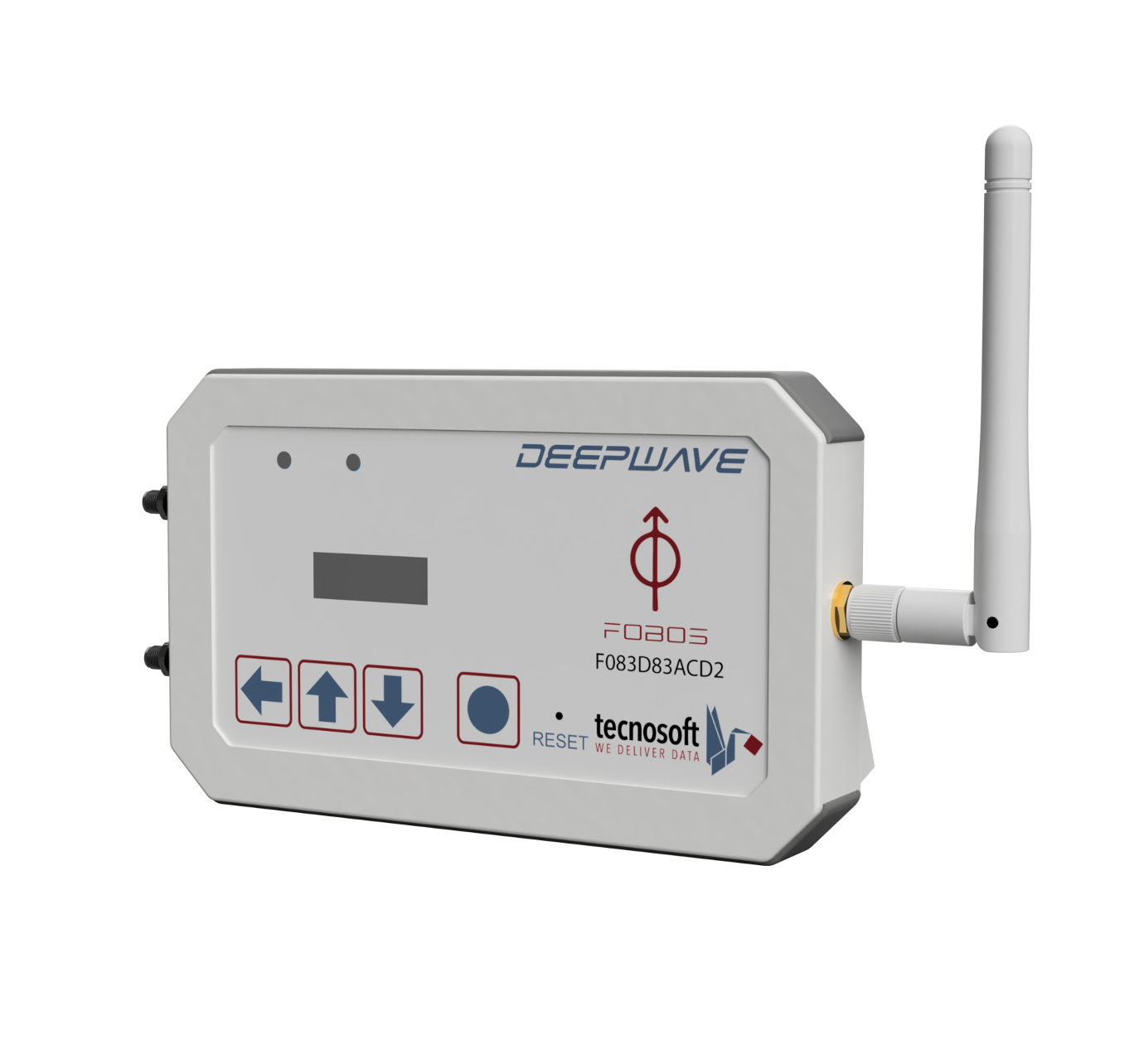

  • External antenna to increase the distance up to 50%
  • 4-buttons for screen control
  • User replaceable batteries
  • Accredia traceable certificate included with the Smart Sensors

Plus

  • Quick installation
  • Easy configuration
  • Fast recalibration procedure with the Smart Sensors
  • Covers long transmission distances
  • Easy to read display
  • Acoustic alarms for immediate intervention
  • Validatable DeepWave system in pharmaceutical and medical environment

The system

Fobos is part of the DeepWave system that is made up by:

  • DeepWave radio modules (LoRa nodes)
  • Helios receiver (LoRa gateway)
  • TSLog 21 software
Dimensions 151.6 X 88 x 33 (mm) (with connectors) / 146.6 X 88 X 33 (mm) (without connectors)
Weight 280 g
Materials ABS, Rubber
Sensors 2 X Smart Sensor inputs
Temperature range -20 °C ÷ +50 °C (non condensing)
Memory (n. of acquisitions) 16.383
Acquisition step From one every 5 minutes up (in steps of 1 minute)
Display size 0,91” 22,4 x 5,7 (mm) (128 x 32 pixel)
Display and functions Current values, Alarms, Diagnostics, Radio Signal Strength
Alarms Local (acoustic)
Functions Data recording, transmission, alarm
Communication Radio
Protocollo Radio LoRa
Available frequencies 868 MHz, 915 MHz, 920 MHz, 923-2 MHz
Antennae External
Battery type 3 X AA 1,5 V batteries
Battery life 12 months with 15 minutes transmission step and 2 sensors connected
Protection degree IP65
Software&Mobile App TSLog 21
Regulation compatibility CE, ROHS
Regulation compatibility FDA 21 CFR Part 11, Annex 11, GAMP 5
