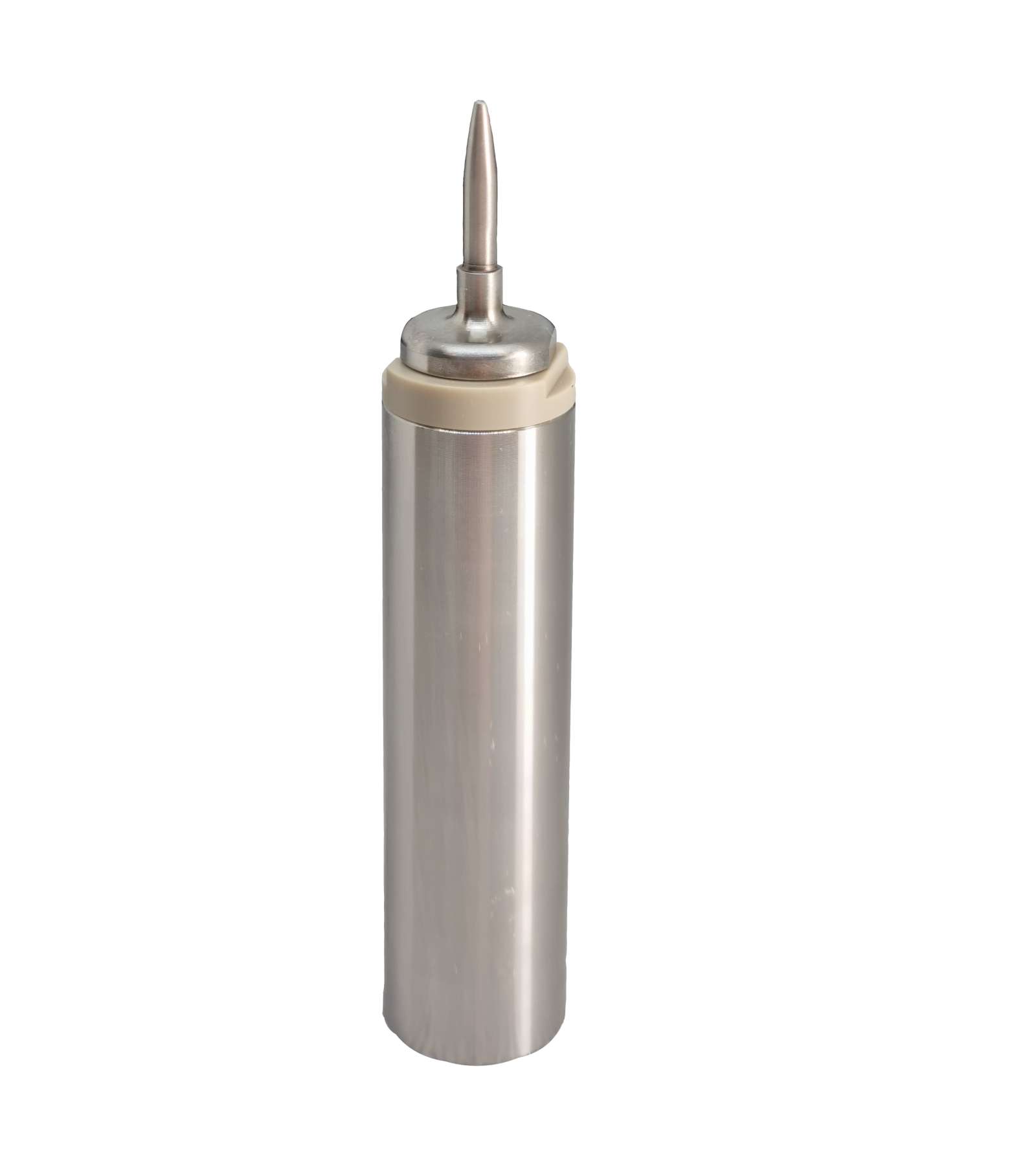

S-Micro XL is a temperature data logger from -40°C to 220°C (standard calibration from 25°C to 140°C, calibrable from 0°C to 220°C, only…

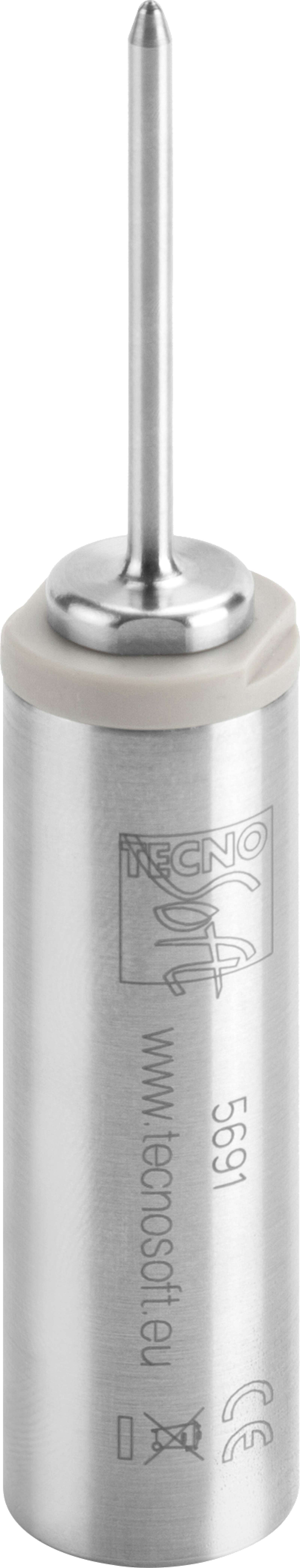

S-MicroW XL is a temperature data logger from -40°C to 250°C (standard calibration from 25°C to 140°C, calibrable from -40°C to 250°C, only the probe will resist above 140°C. For calibrations above 140°C probe minimum length is 50 mm) with 20 or 50 or 100 or 150 mm or on demand length external probe (probes cannot be switched) on a 5 mm base (base height is not counted for probe length), managed with Windows software and USB interface (DiskInterface HS, Multibay). Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable cetificate on 6 points.
The other versions of the data logger are:
For each version it is available the L model too, S-MicroW L, which has same diameter but a smaller battery: less battery life but reduced size.
There are also other models of high temperature data loggers, for pressure and humidity too.
Note: if used below -30°C, battery life will be highly reduced.
|SPD 220.127.116.11 - Complete software (USB drivers included)|
|TS Manager 18.104.22.168 - Complete software (USB drivers included)|
|Tecno Calib 22.214.171.124 - Complete software (USB drivers included)|
|DiskInterface HS, DiskInterface HS Mini - USB drivers Windows XP / Vista / 7|
|DiskInterface HS, DiskInterface HS Mini - USB drivers Windows 8 / 10|
|Multibay - USB drivers Windows Xp / Vista / 7|
|Multibay - USB drivers Windows 8 / 10|
|DiskInterface (old model) - USB driver Windows XP / Vista / 7 / 8 / 10|

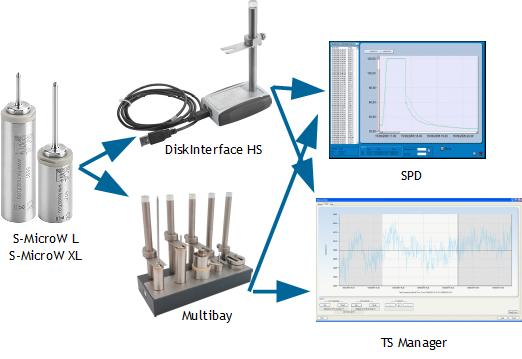

The system is made up by:
|Dimensions||64 h X 20 Ø (mm)|
|Probe dimensions||Probe base dimensions 3 h X 14 Ø (mm) - Probe 20/50/100/150/on demand l X 3 Ø (mm) (l on demand: min. 12 mm / max. 175 mm. For longer probes ask for quotation)|
|Materials||Stainless steel AISI316L, PEEK|
|Temperature range||-40°C ÷ +140°C|
|Sensor temperature range||-40 °C ÷ +250 °C|
|Standard calibration points (temperature)||25/50/75/100/121/140°C|
|Extra calibration points (temperature)||Within the range -40 °C ÷ +250 °C|
|Temperature resolution||0,01 °C|
|Temperature accuracy||± 0,1 °C (within the calibration range) / ± 0,05 °C with ultra accuracy option|
|Memory (n. of acquisitions)||20.224|
|Acquisition step||From 1 every second up, with 1 second steps|
|Battery life||+17.000.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures)|
|Software&Mobile App||SPD, TS Manager|
|Accessories||DiskInterface HS, Multibay universale|
