Temperature Smart Sensor
Smart temperature sensor for DeepWave system radio data logger with Lo.Ra. Wan. The Smart Sensor contains its calibration and identification data in the …

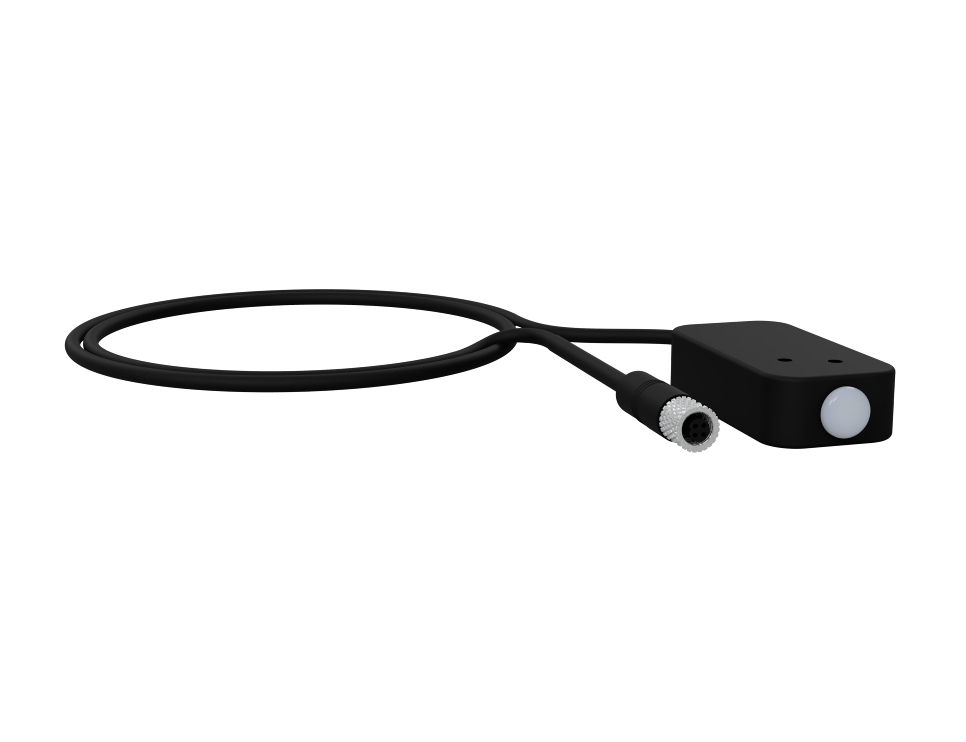

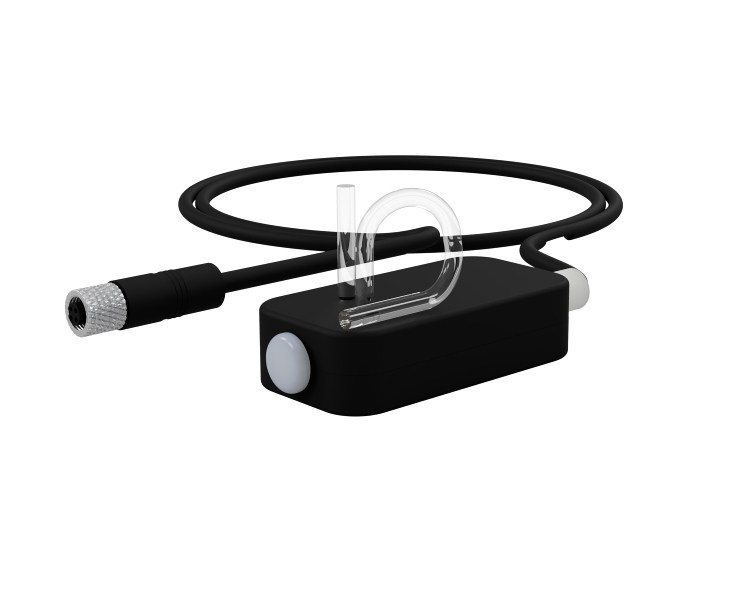

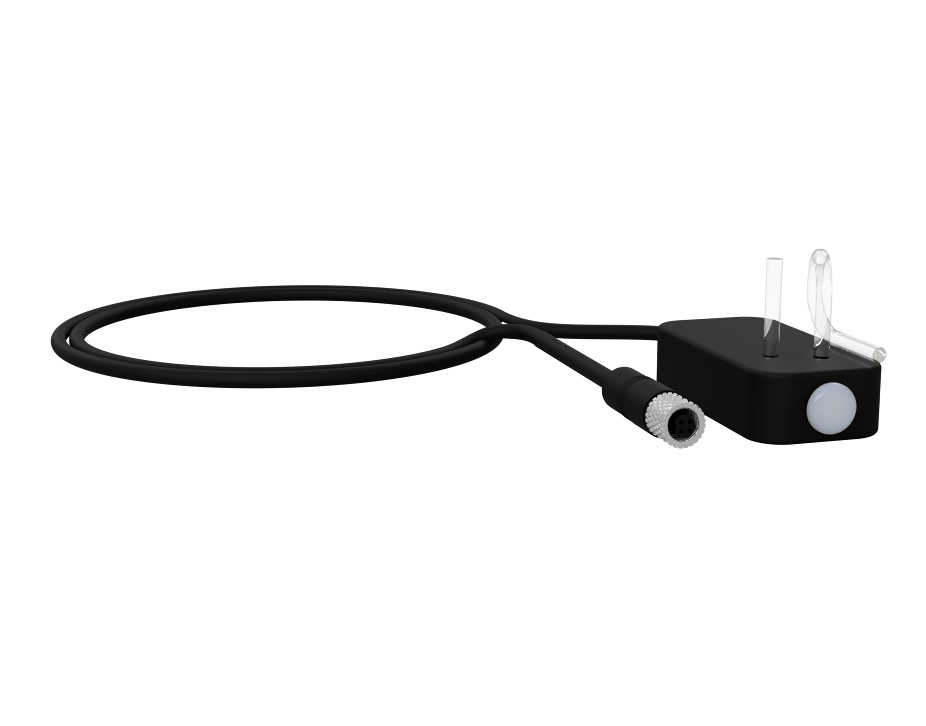

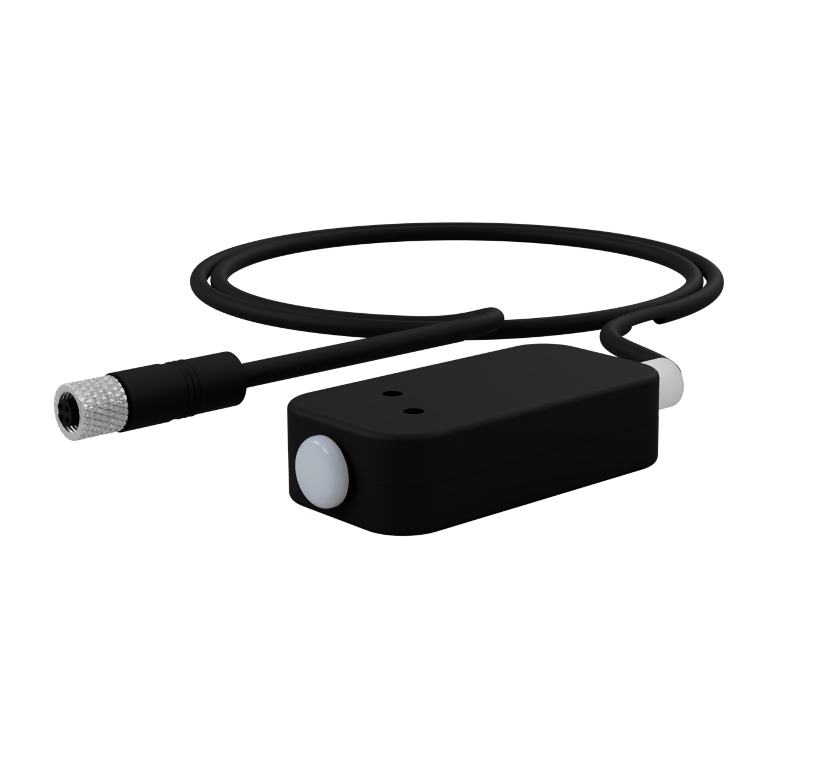

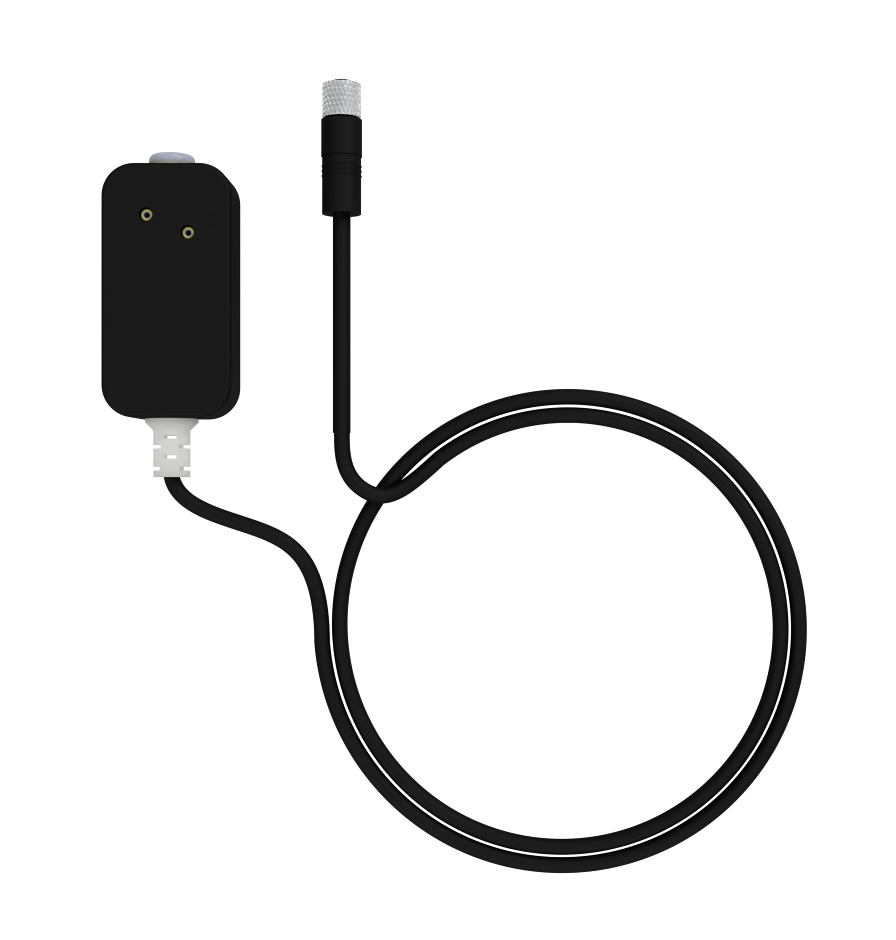

Smart Sensor miniature differential pressure sensor for wireless data logger of the DeepWave system with LoRa Wan technology, with pressure sensor without air passage. Designed specifically for clean rooms but not only, it includes tubes adjustable in length by inserts in the two environments at different pressure. The sensor is without air flow passage for the maximum secuirity of the environment.
The Smart Sensor contains the calibration and identification data in its electronics: so the recalibration process is simple and quick: just replace the sensor that is sent to you, calibrated, before the calibration expires of the one installed, without having to request the intervention of a technician on site for calibration or having to remove the data loggers from their position to send them to a calibration laboratory.
There are no additional costs!
All Smart Sensors are supplied with an Accredia traceable calibration certificate included.
Differential pressure with the Smart Sensors works with the DeepWave system and LoRa Wan radio nodes:
|Dimensions||43 X 22 X 11 (mm)|
|Temperature range||-20 °C ÷ +50 °C|
|Standard calibration points (pressure)||-1 / 0 / 1 mbar|
|Extra calibration points (pressure)||Within the range -1 ÷ +1 mbar|
|Pressure resolution||0.0001 mbar|
|Pressure accuracy||± 0,02 mbar (±2% typical a 25°C; ±2,5% max.)|
|Sensor temperature range||0°C ÷ +50°C|
|Temperature resolution||0,01 °C|
|Sensor type||With no air flow passage|
