RHTemp80 XL is a temperature and humidity data logger from -40°C to 80°C (calibration from 25°C to 80°C), managed with Windows software and…

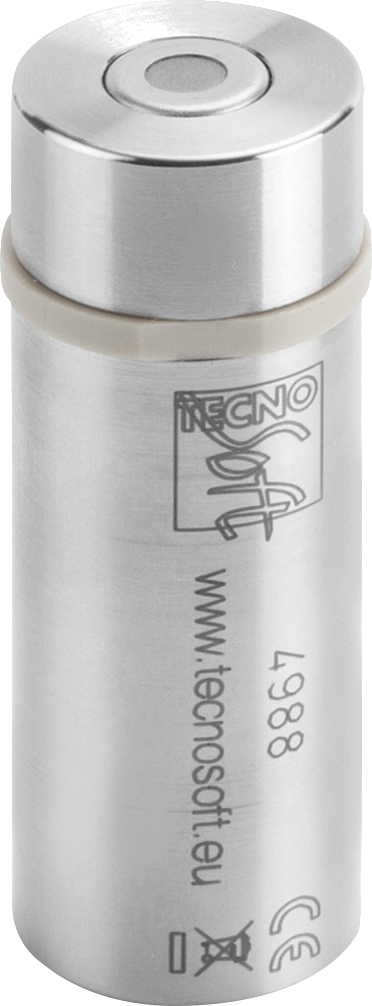

RHTemp80 L is a temperature and humidity data logger from -40°C to 80°C (calibration from 25°C to 80°C), managed with Windows software and USB interface (DiskInterface HS, Multibay). Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable cetificate on different points.
It is available the XL model too which has same diameter but is higher because it hosts a bigger battery for a longer life time, along with the model for up to 125°C.
Among the possible applications there are the drying processes monitoring, especially of pasta, of powders and grains storehouses, of extreme environments.
There are also other models of high temperature data loggers, for pressure and temperature only too.
|HumiPressureDisk 220.127.116.11 - Complete software (USB drivers included)|
|TS Manager 18.104.22.168 - Complete software (USB drivers included)|
|DiskInterface HS, DiskInterface HS Mini - USB drivers Windows XP / Vista / 7|
|DiskInterface HS, DiskInterface HS Mini - USB drivers Windows 8 / 10|
|Multibay - USB drivers Windows Xp / Vista / 7|
|Multibay - USB drivers Windows 8 / 10|
|DiskInterface (old model) - USB driver Windows XP / Vista / 7 / 8 / 10|
The system is made up by:
|Dimensions||46 h X 17 Ø mm - 18 Ø (mm) peek ring|
|Materials||Stainless steel AISI316L, PEEK|
|Temperature range||-40°C ÷ +80°C|
|Standard calibration points (temperature)||23/50°C|
|Extra calibration points (temperature)||Within the range -40 °C ÷ +80 °C|
|Temperature resolution||0,015 °C|
|Temperature accuracy||± 0,2 °C (0 °C ÷ +60 °C) / ± 1,3 °C (-20 °C ÷ +80 °C) derates linearly|
|Humidity range||0% ÷ 90% RH (non condensing)|
|Standard calibration points (humidity)||30/50/70% @ 23°C|
|Extra calibration points (humidity)||Within the range 10% ÷ 90% RH|
|Humidity accuracy||± 1,8% RH (10% ÷ 80%) / ± 4% RH (80% ÷ 90%) @ 23°C ± 10°C|
|Memory (n. of acquisitions)||10.112|
|Battery life||+8.000.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures)|
|Acquisition step||From 1 every second up|
|Software&Mobile App||HumiPressureDisk, TS Manager|
|Accessories||DiskInterface HS, Multibay universale|
